Understanding Punctured Insulator Detection and Its Importance in Power Systems

Insulators play a critical role in transmission and distribution systems by providing electrical isolation between conductors and supporting structures. However, internal punctures or insulation failures may occur due to ageing, electrical stress, lightning, contamination, or mechanical damage. Since these defects may not always be visible, Puncture Insulator Detection (PID) is an important part of preventive maintenance.

What Is Puncture Insulator Detection?

Puncture Insulator Detection (PID) is a specialized testing process used to identify electrically defective or punctured insulators that may appear normal during visual inspection. Insulator deterioration and puncture can occur due to changing weather conditions, moisture, pollution, dust, bird droppings, lightning, electrical stress, and prolonged exposure to environmental conditions. Early detection helps prevent insulation failure, flashovers, equipment damage, and unexpected power interruptions.

Why Is PID Important?

A defective insulator can compromise the reliability of an entire insulator string and increase the risk of faults and outages. Regular PID testing helps utilities identify weak or defective units before they develop into major failures, enabling timely replacement and planned maintenance.

Beyond Visual Inspection

Visual inspection can identify visible cracks, contamination, physical damage, or other abnormalities, but internal electrical defects may remain undetected. PID testing provides an additional diagnostic layer by assessing the electrical condition of individual insulators.

Our Positron Insulator Testing Kit

At AC AND DC Electrical Pvt. Ltd., we have our own Positron Insulator Testing Kit, which is used for carrying out Puncture Insulator Detection (PID). Our trained technical team uses the kit for systematic field testing and identification of defective insulators.

Supporting Preventive Maintenance

Regular PID testing helps utilities adopt a condition-based maintenance approach. Identifying defective insulators in advance allows replacement to be planned during scheduled maintenance, reducing the possibility of unexpected failures and unplanned outages.

Final Thoughts

Punctured insulators can pose a serious reliability risk when they remain undetected within transmission and distribution networks. Since many internal defects may not be identified through visual inspection alone, Puncture Insulator Detection (PID) provides an effective diagnostic approach for improving the reliability and safety of overhead electrical networks.

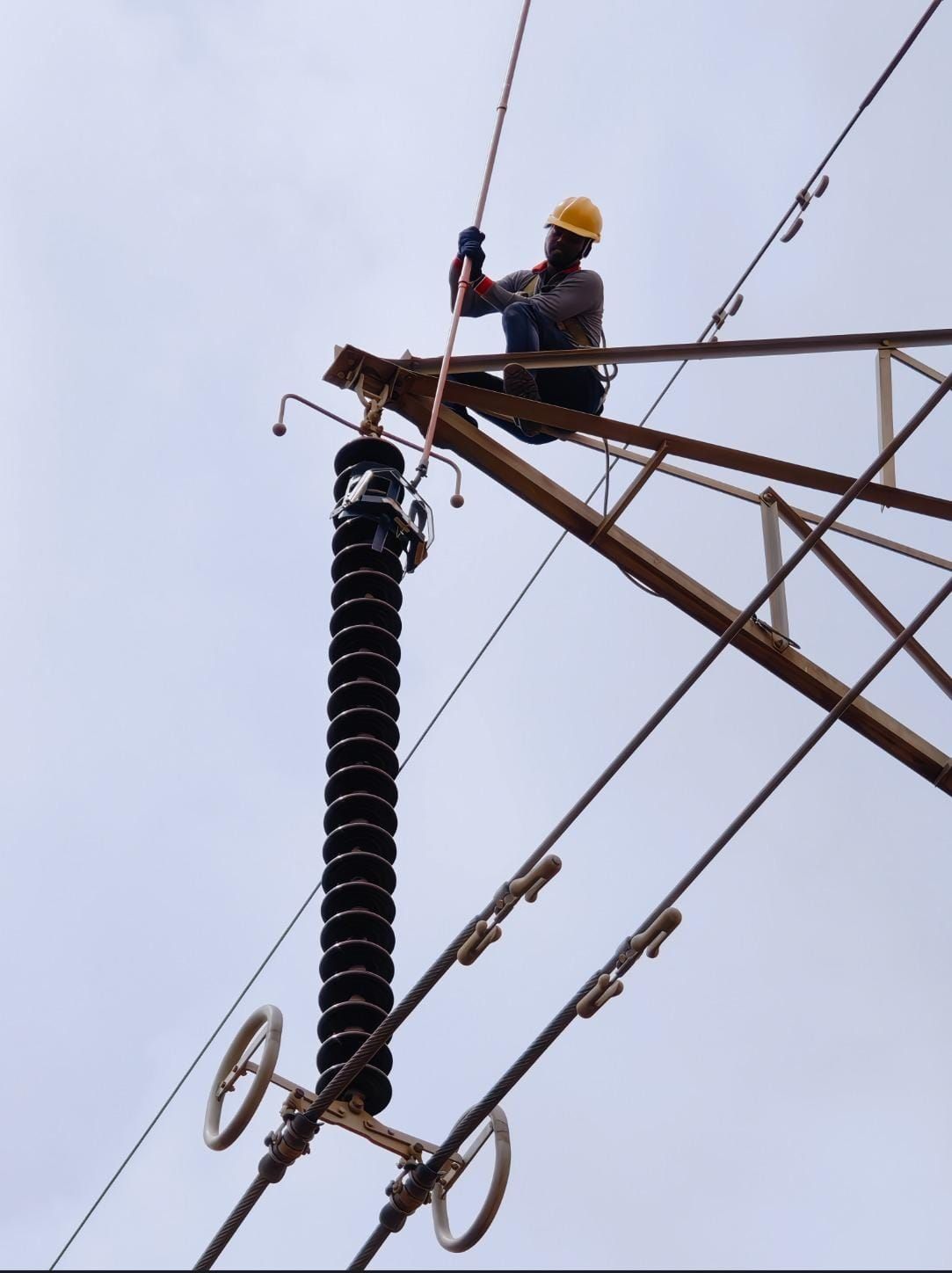

With our in-house Positron Insulator Testing Kit and experienced technical team,
AC AND DC Electrical Pvt. Ltd. provides specialized PID services to identify punctured and defective insulators at an early stage. This helps utilities and industries reduce failure risks, plan preventive maintenance, and maintain safer, more reliable, and dependable power infrastructure.
